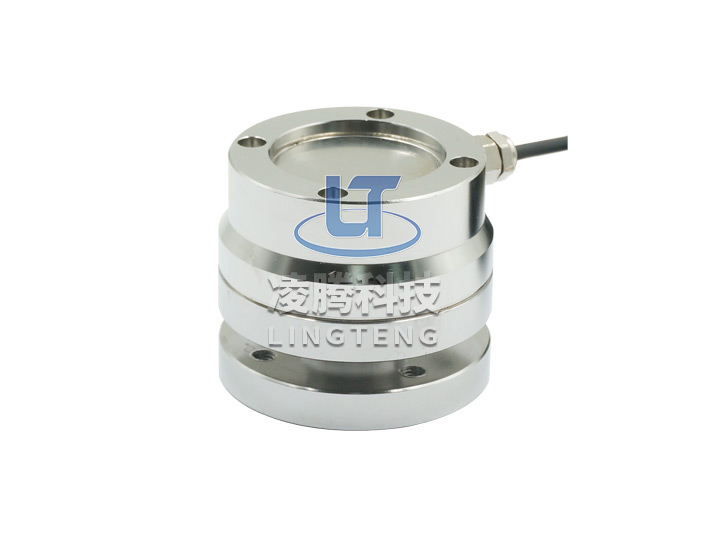

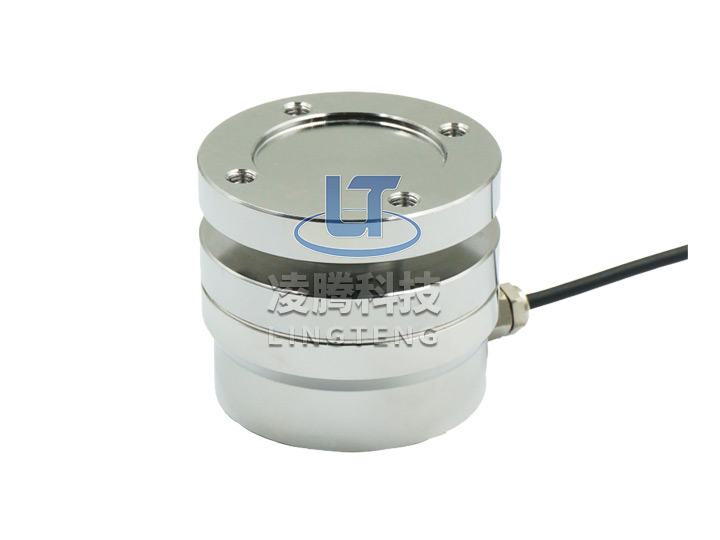

量程：0.5/1/2/3/5/10/20/30/50/100kN
本体材质：不锈钢
综合精度：0.2%
电缆长度：3m
|

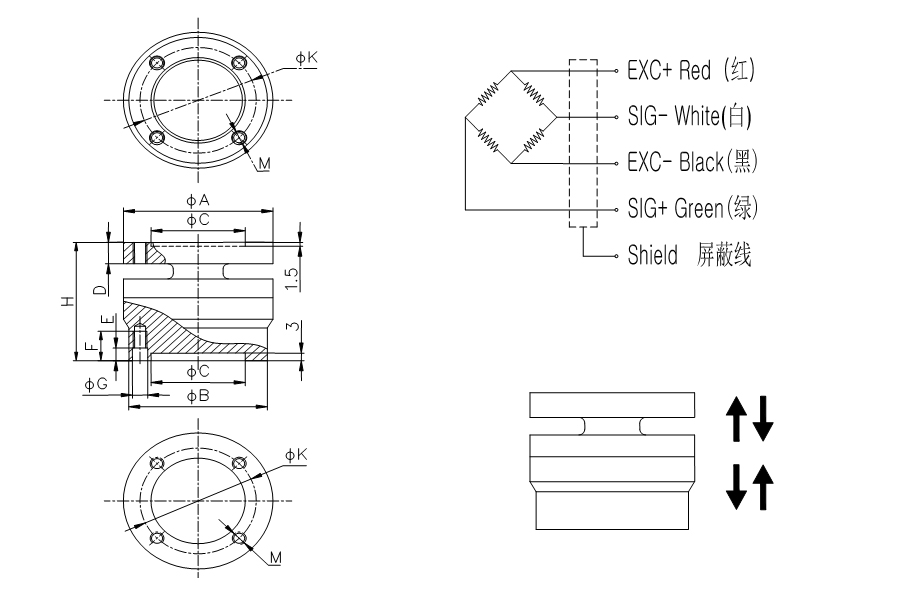

Capacity（kN） |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
Weight |
|
0.5,1,2,3,5,10 |
54 |
50 |
34 |
8.5 |
5 |
13 |
5.5 |
47 |
42 |
8-M5 |
0.8kg |
|
20,30,50,100 |
95 |
90 |
55 |
15 |
5.5 |
20 |
11 |
72 |
70 |
16-M10 |
2kg |
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity |
0.5,1,2,3,5,10,20,30,50,100kN |
|
输出灵敏度 |
Rated output |
1.5±10%mV/V |
|
综合精度 |
Combined Error |
0.2%F.S |
|
零点输出 |
Zero balance |
±2% F.S. |
|
非线性 |
Non-linearity |
0.2%F.S. |
|
滞后 |
Hysteresis |
0.1%F.S. |
|
重复性 |
Repeatability |
0.05%F.S. |
|
蠕变（30min） |
Creep(30min) |
0.1%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
0.05%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
|
输入电阻 |
Input impedance |
780±10Ω |
|
输出电阻 |
Output impedance |
700±5Ω |
|
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
|
激励电压 |
Recommended excitation |
5~15V |
|
工作温度范围 |
Operation temp range |
-20~80℃ |
|
安全超载 |
Safe overload |
150%F.S. |
|
电缆线尺寸 |
Cable size |
Φ4×3000mm |
|
材料 |
Material |
Stainless Steel（不锈钢） |
|
防护等级 |
IP Class |
IP68 |
